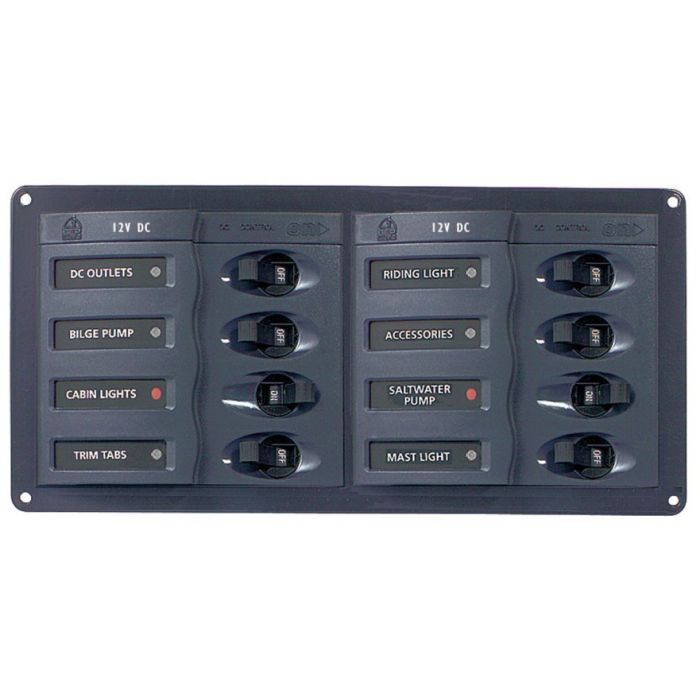

Panel 901H 12V 8 breaker horizontal mount
Stock Status: Out of stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Description
DC Panel - 8-Way - Horizontal
Part # 901H
• Red systems on LED 12V
• Marine grade powder coated aluminium
• ABYC standard voltage indication
• Green LED backlit labels
• Stylish clip on contour fascia
• Label sets and buss bar supplied with panels.
• Cutout size - ⅜” (10 mm) inside all external edges.
General Specification
| Model | No. of circuits | Max. amp | Negative bus | Direction | H x W x 65 (mm) | Label sheet |
| 901H | 8 | 160 | 6 way | Horizontal | 115 x 239 | 1 |
| CB’s - single pole | |||||
| 5 | 10 | 15 | 20 | 25 | 30 |
| 2 | 2 | 3 | 1 | - | - |
Cutout size - ⅜” (10 mm) inside all external edges.
