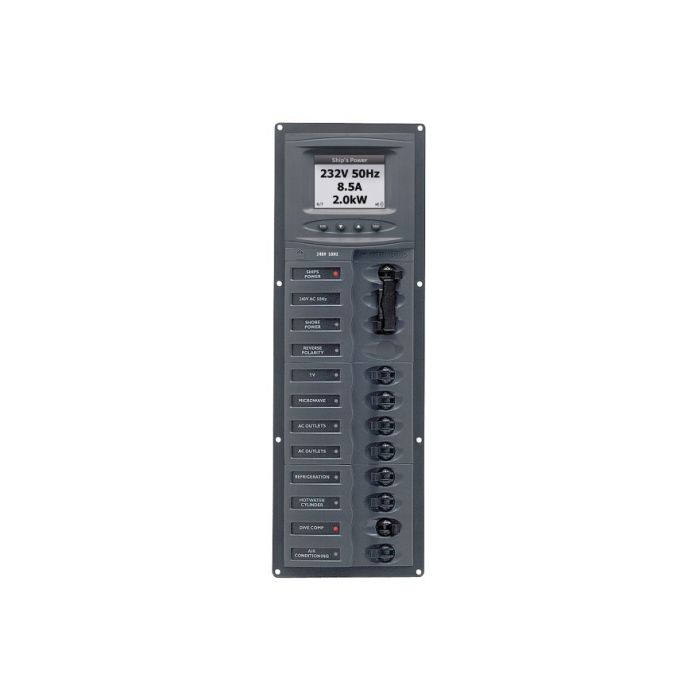

Panel 900-AC2V-ACSM 230V 2 input+ 8 load vertical mount with digital meter
Stock Status: Out of stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Description
AC Main Circuit Breaker Panels—Digital
900-AC2V-ACSM
• All supplied with tranducers
• Reverse polarity indicator
• Double pole mains input CBs with side lockout
• Digital meter shows volts, amps and frequency
• LED wired to indicate live panel with mains breaker either on or off
• AC source selector ensures no cross over between AC inputs (ship or shore power)
• AC voltage/frequency label to comply with ABYC Standards
General Specification
| EE part number | 08.11.0307 |
| Part # | 00-AC2V-ACSM |
| Nominal Voltage | 230V AC |
| Meter | Digital |
| Total Positions | 8 Loads + 2 Inputs |
| Circuit Breakers (single + double pole) | 1x 5A, 3x 10A, 3x 15A, 1x 20A + 1x 20A, 1x 30A |
| Maximum Amperage | 30A |
| HxWx2.5" | 15" x 5" |
| HxWx65 mm | 380 x 127 mm |
| Neg Bus | 2x6 way |
| Label Sheet | 5 |
