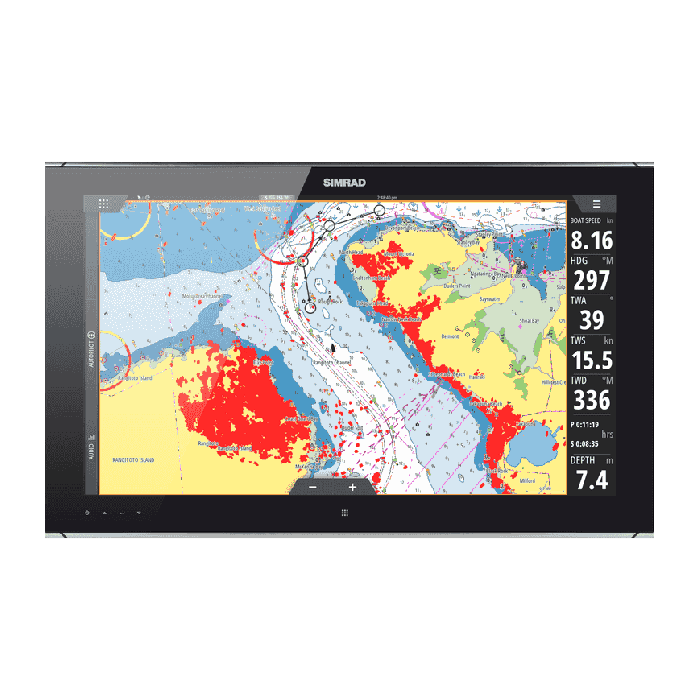

Monitor MO24-T touch with high brightness
Stock Status: Out of stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Description
The MO24-T is a High Brightness, Multi-Touch monitor with Full HD 1920x1080 resolution designed for sleek bridge installations in both yachts and professional vessels.
The 1000 nit peak brightness ensures the information is clearly visible even in direct sunlight, and the minimum brightness is extremely dim ensuring you are not being blinded at the helm at night. Also, it does not wash out night vision goggles, for use in professional Search and Rescue operations at night. NMEA2000 dimming controls ensure all connected Simrad equipment dims to the same levels across the bridge.
Key Features
- Hight Brightness, 1000 nit display
- Full HD Widescreen
- HDMI/DVI input from any video source, not just Simrad
- Low profile glass bridge design
- IP66 in Dash Mount
- Bracket mount option
Touch control
Available either over USB to 3rd party equipment or via serial cable to the NSO marine processor. Touch can be disbled if so desired. Designed for flush mount a Gimbal Bracket for desk mounting is available as an accessory. Flush mounted it is IP66 from front, on brackets it is IPX2.
Connections
Includes HDMI, DVI-D, 2x Analog Composite (BNC), NMEA2000, Serial and USB for Touch Control and 12/24V DC Power input, including Power control bus. Note: HDCP is not supported.
General Specification
| Enclosure | ABS Plastic Rear Case, Glass Front |
| Operating Temperature | -15°C to +55°C |
| Non-Operating Temperature | -20°C to +60°C |
| water ingress | IPx6 (When dash mounted), IPx2 from back |
| Weight | 7.04Kg |
| dimensions (WxHxD)mm | 625 x 386 x 74 |
| Display Brightness | 1000nit |
| Display Resolution | 1920 x 1080 |
| Display Viewable Area (WxH)mm | 532 x 299 |
| Display Colour Depth | 16.7 Million Colours |
| Display Viewing Angle H/V deg | 80/80/80/80 |
| Contrast Ratio | 5000:1 |
Touch Screen - Projected
| Capacitance Multi Touch | Yes |
| Operating voltage | 10 - 31.2 V DC |
| Power consumption (nominal) | 65W |
| Low power standby mode | Yes |
| Protection | reverse polarity and temporary over-voltage to 36V |
| Conformity | CE, C-Tick, HDMI |
| Power and Setup Keys | Capacitive Touch - Power Key, Up, Enter, Down, Home |
| NMEA 2000 | 1 port on rear (Micro-C male) |
| Composite Video inputs | 2 ports on rear (BNC female. NTCS or PAL format) |
| Digital Video Inputs | 2 ports on rear (1 x DVI-D, 1 x HDMI) |
| Supported Video Resolutions | 640x480(VGA 4:3), 800x600 (SVGA 4:3), 1024x768 (XGA 4:3), 1280x720 (HD 16:9), 1280x800 (16:10), 1280x1024 (SXGA 5:4),1366x768 (WXGA), 1920x1080 (Full HD 16:9), 1920x1200(WUXGA 16:10) |
| USB | USB Type-B Plug on rear for alternate touch screen connection |
| Serial | 4 way serial plug on rear for touch screen connection via RS422 to NSO evo2 |
| Picture in Picture | Yes, Variable size and position |
| Thermal Protection | Automatic - Backlight reduced to 10% |
| Menu Languages | English, French, German, Spanish, Italian, Portuguese |
