Light Bar 18x5W LED Black Narrow Beam 9-32V Adjustable Trunnion
Stock Status: In stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Description

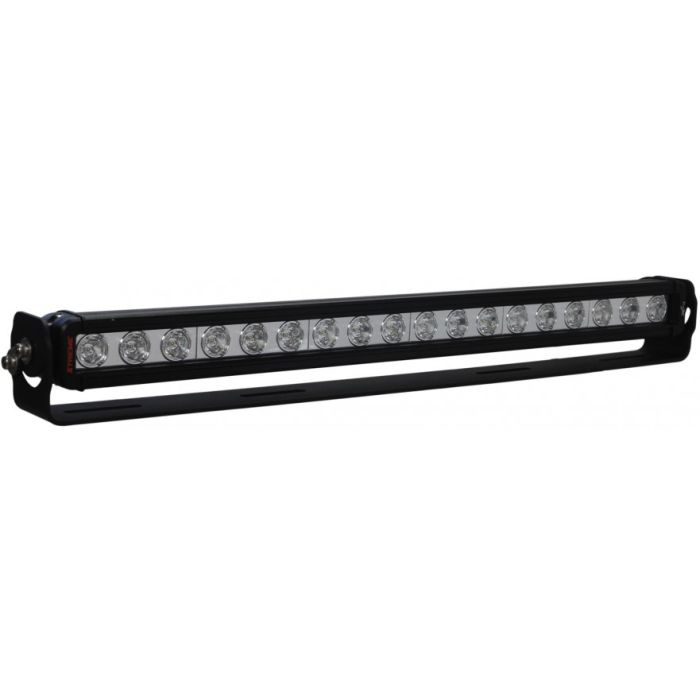

The Vision X 24.26” CTL-HPX18 features 5 watt LED technology. Coming in multiple beam patterns
the 10° narrow beam for great distance, with little spread. Then the 40° flood beam for great spread, with little distance. The CTL-HPX18 comes with an extended warranty, and multi-volt 9-32V dc input. This light weighs 7.28 pounds and offers a mounting depth of 3.11”. Coming with a 60 point 360° locking trunnion adjustment also with prime drive for enhanced reliability and output.
- 60 Point 360° locking trunnion adjustment prime drive for enhanced reliability & output.
- Integrated electronic thermal management (ETM).
- Xtreme five watt LED is driven to 90% efficiency.
- Enhanced optics optimize distance and depth.
- PWM integrated dimming circuitry.
- 90% Optically pure.
General Specification
| Part number | 09.06.0028 (black body) 09.06.0029 (white body) |
09.06.0030 (black body) 09.06.0031 (white body) |
| Models | CTL-HPX1810 (black) CTL-HPX1810W (white) |
CTL-HPX1840 (black) CTL-HPX1840 (white) |
| Beam pattern | Narrow | Wide |
| Number of LED’s | 18 | 18 |
| Watts | 90 | 90 |
| Weight (kg) | 3.3 | 3.3 |
| Mounting depth | 3.11” | 3.11” |
| Lifespan | 50,000 Hours | 50,000 Hours |
| Dimensions | 24.26” x 3.11” x 2.36” | 24.26” x 3.11” x 2.36” |
| Input voltage | 9-32V dc | 9-32V dc |
| Optic efficiency | 90% | 90% |
| Driven at | 90% | 90% |
| Amp draw | 7.50A | 7.50A |
| IP rating | IP-68 | IP-68 |
| Vibration rating | 15.6G | 15.6G |
| Operating temperature | -40ºC ~ +80ºC | -40ºC ~ +80ºC |
