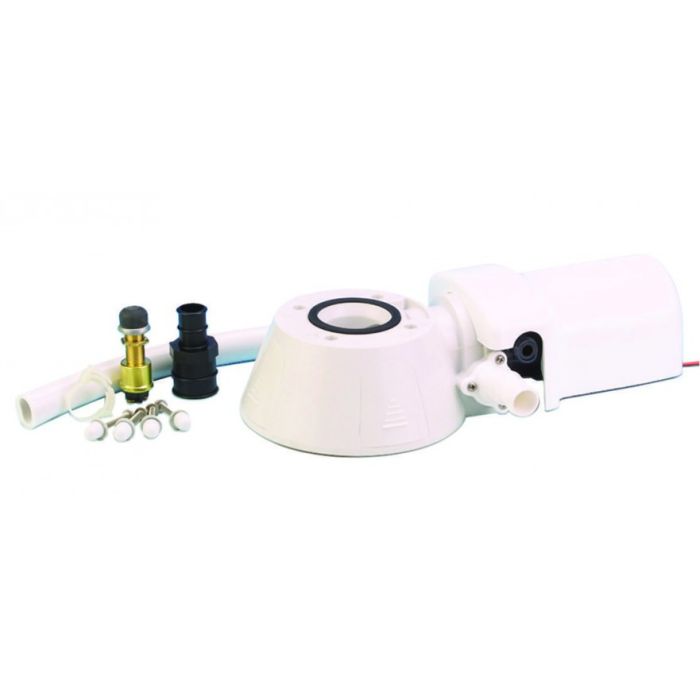

Kit toilet conversion 24V manual to electric

Conversion Kit, combined flush/waste pump, 24V
37010-0097

Fuse Size: 15(amp)
Maximum Current: 8(amps)

Convert the manual toilet compact and regular bowl models to full electric operation without need to alter existing inlet or discharge seacocks.

• Converts most toilets with 4 bolt screw pattern on a 3¾ (95 mm) diameter bolt circle such as Groco, Raritan, Wilcox Crittenden, Mansfield and Sealand.
• Push button flushing for ease and simplicity of operation.
• Comprehensive kit has all necessary parts, including flushing pump, macerator pump, switch, adaptors, clamps, hose and fastenings.
• Flushing pump self-priming up to 4 ft (1.2 m) vertical lift.
• May be installed 3 ft (1 m) below the waterline.
• For installations fitted with vented loops use a solenoid valve on inlet hose (see below).
• Complies with USCG 183.410 and ISO 8846 MARINE (Ignition protection).

Fitting: Connections for ⅝” - ¾” (16-19 mm) ID inlet hose, 1” or 1½” (25 or 38 mm) ID outlet hose.
Size: 13¼” long x 8¼” wide x 3¼” high (34 cm x 21 cm x 8 cm).
Weight: 12½ lb. (5.7 kg).
