Kit adaptor SENSORSR for mounting SENSORA or SENSORB on FTKIT
Stock Status: In stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Description

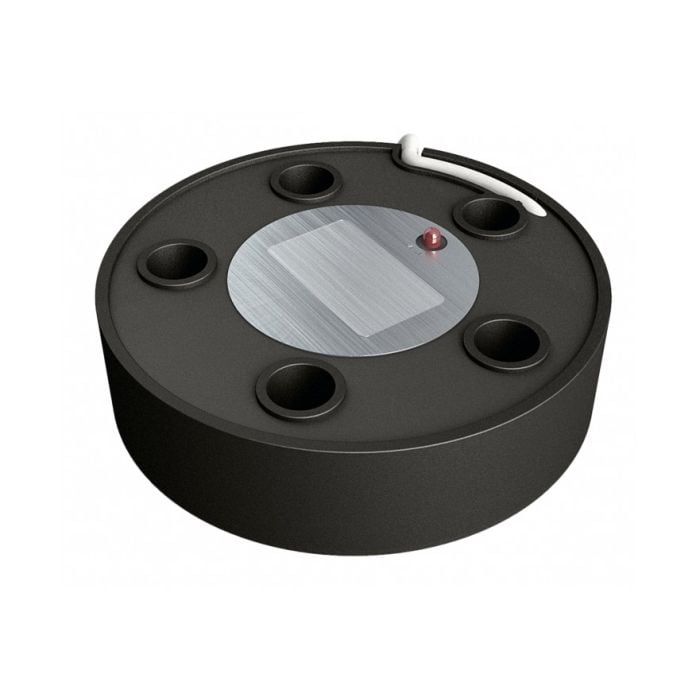

The Vetus ultrasonic level sensor, SENSORA & SENSORB are contactless and will measure the fluid level in any type of tank. It is suitable for use with: petrol, diesel fuel, drinking water, black and grey waste water. After installation, the sensor can be calibrated very easily with the aid of a LED and a calibration wire; no other equipment is required. The sensor may be installed in any type of tank, regardless of its dimensions, but with a maximum depth of 120 cm. The sensor may be connected to all standard Vetus analog level indicators and also to the Vetus waste water control panel (WWCP). These sensors are not suitable for use with metal tanks.
General Specification
| Voltage | 12V and 24 Volt Dc |
| Current consumption: | 35 mA |
| Interface (SENSORA) | Analogue |
| Interface (SENSORB) | Bus (RS485 bus). |
| Tank depth | 120 cm |
| Accuracy | ± 5% |
| Temperature range | - 20 to + 70°C. |
| Flange | SAE, 5 holes |
| Dimensions | Ø 77 x 23 mm |
