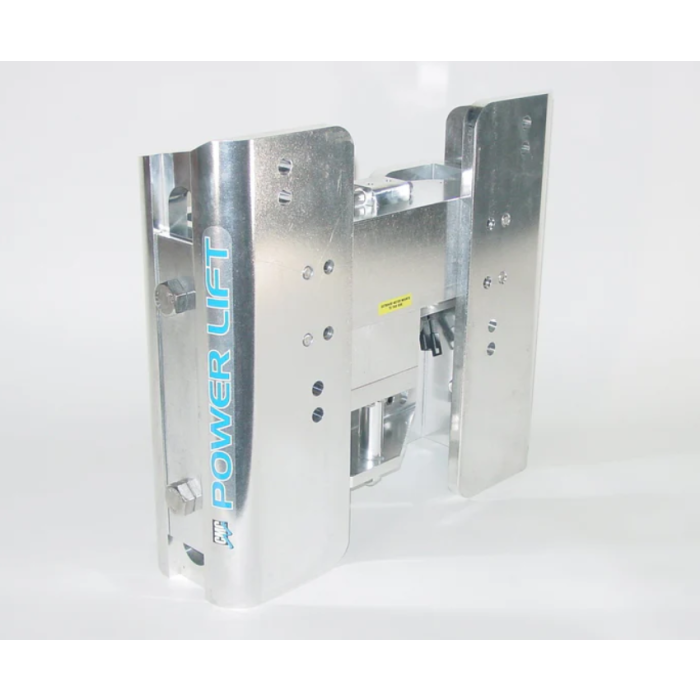

Jack plate HD 5-1/2" setback w/o gauge PL-65SS extruded aluminium rated for 400HP

Description

New Heavy Duty Power Lift Hydraulic Jack Plate for400 HP and Smaller Motors. The PL-65HD Heavy Duty Power Lift Hydraulic Jack Plate is made of 6061 T6 aluminum alloy extrusions and fastened with stainless steel fasteners for maximum strength and durability. The structure incorporates a roller design providing less friction, longer wear, less maintenance and virtually eliminates any chance of binding. This design also carries the same load whether the unit is all of the way up or down. On other brand jack plates with a slide rail design, the higher the motor is raised the less strength it has.

The self-contained and water proof electric hydraulic power unit and cylinder is embodied into one actuator inside the structure of the Power-Lift and includes its own fluid reservoir. Providing a lifting capacity of 7,853 lbs. of thrust, it has no problem lifting a400 HP motor at full speed. It is made of 100% non-ferrous material which makes it more impervious to salt and fresh water.
