Inverter AC master 12/2000
Stock Status: Out of stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Download Document
Description

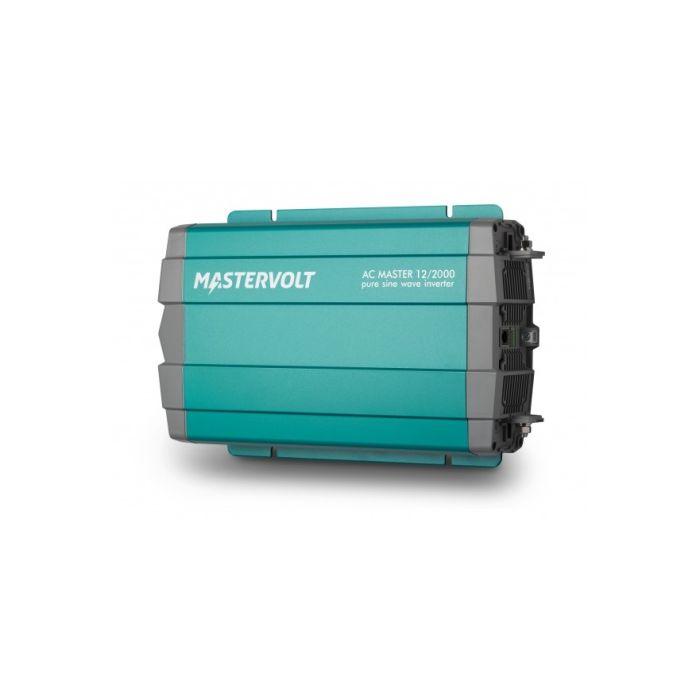

AC Master 12/2000 (230 V)
Reliable AC power for recreational and semi-professional use
These affordable sine wave inverters convert 12 V battery voltage into reliable 230 V 50/60 Hz grid power, making them ideal for recreational and semi-professional applications. The AC Master series is easy to install and delivers full output, even under the most demanding conditions. The pure sine wave technology provides an outstanding power quality, ensuring the correct functioning of sensitive equipment. The usage of high frequency switching technology eliminates any annoying humming and buzzing sounds.
Representing complete value for money, these ruggedly built inverters provide essential home comforts when you’re far from the nearest grid connection.
Applications
Both recreational and semi-professional use, where grid power varies or is unavailable.
Applications include lighting, appliances, electric cooking and power tools.
General Specification
| EE part number | 08.03.0075 |
| OEM part number | 28012000 |
| Model | AC Master 12/2000 (230 V) |
| General specifications | |
| Output voltage | 230/240 V 50/60 Hz (selectable) |
| Output waveform | true sine |
| Nominal battery voltage | 12 V |
| Recommended battery capacity | ≥ 200 Ah |
| Continuous power at 25 °C / 77 °F, cos phi 1 | 2000 W |
| Continuous power at 40 °C / 104 °F, cos phi 1 | 2000 W |
| Peak load (1 min.) | < 2300 W |
| Peak load (1 s) | < 4000 W |
| AC connection | plug connection EU (Schuko) |
| Galvanic isolation | yes |
| Efficiency | 0.94 |
| Display/read-out | LED indication: battery voltage, load level, status |
| Alarms | potential free alarm contact |
| Dimensions, hxwxd | 248 x 443 x 83 mm |
| Weight | 5.2 kg |
| Approvals | CE, E-mark, RCM |
