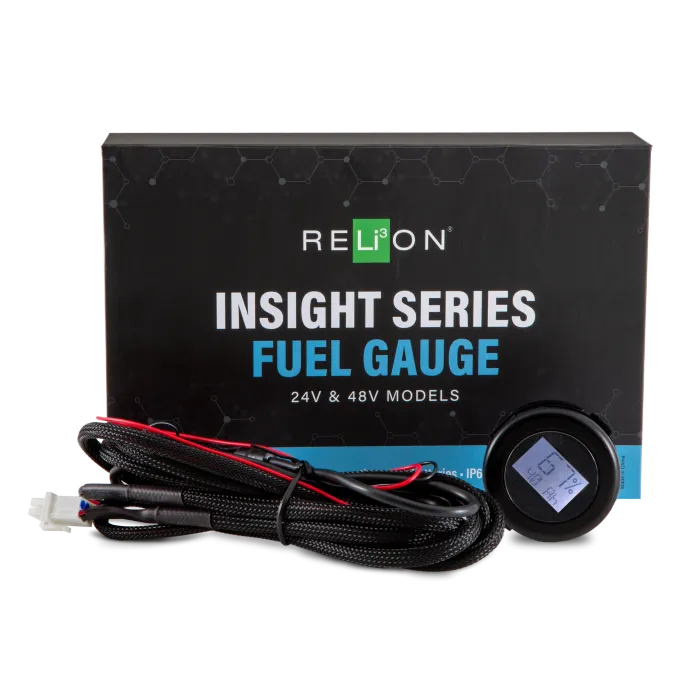

Insight Series 24V & 48V Fuel Gauge

Description

The InSight Series® 24V & 48V Fuel Gauge is designed to provide real-time battery status, ensuring you always know when it's time to recharge.

Key Features:

• Accurate Battery Monitoring: Displays the state of charge (SOC) for up to 14 InSight batteries connected in parallel.
• Real-Time Data: Receives live current readings from all connected battery CANs and calculates the remaining amp hours as a percentage (0-100%).
• Constant Backlight: Low current draw (29mA) ensures the gauge remains visible without excessive power consumption.
• Battery Status Alerts:
  • Displays the number of detected batteries.
  • Shows SOC percentage from 0-100%.
  • "LOBATT" message appears when the battery bank is below 20% SOC.
  • Flashing "LOBATT" message warns when the battery bank drops below 10% SOC.
