Horn / hailer KB-15G-TB

Kahlenberg
AED 7,803.00 Excl. tax

Stock Status: In stock

EEPN 01.09.0178 | OEM KB-15G TALKBACK
Horn/hailer KB-15W-BT - CM-16 Bluetooth Control with P541-07 microphone
Horn/hailer KB-15W-BT - CM-16 Bluetooth Control with P541-07 microphone
EEPN: 01.09.0179
AED 9,428.00
Out of Stock
Solenoid valve V-152L 24V electric/manual combination, 3/4'' NPT
Solenoid valve V-152L 24V electric/manual combination, 3/4'' NPT
EEPN: 01.09.0177
AED 7,327.00
Out of Stock

Download Document

Datasheet
document-text

Description

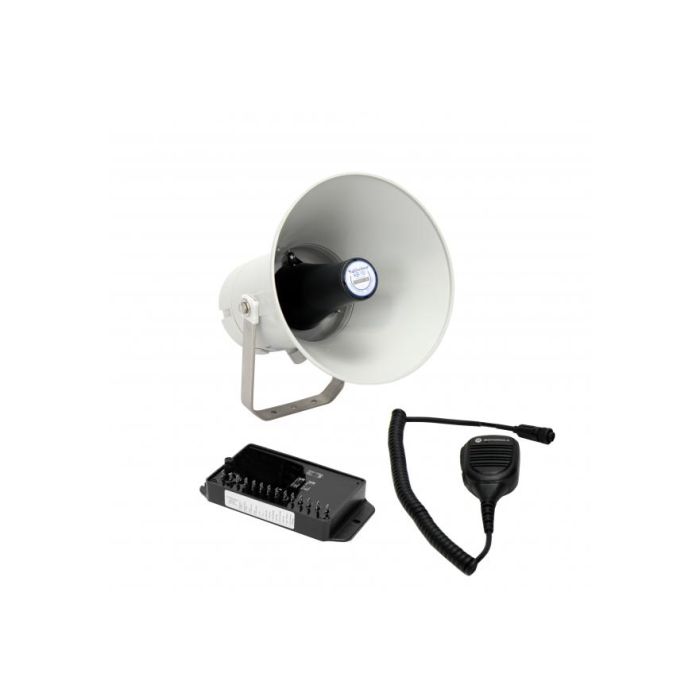

Kahlenberg Horn / hailer KB-15G-TB

cog

General Specification

Type approved for vessels up to 20 meters in length

Frequency 698 Hz
Sound pressure level Output (1⁄3 octave at 1 meter) 121 dB
Voltage 12 or 24 Volt dc
Power consumption 40 Watts
Materials -Horn & Driver Polyamide
Materials -Mounting bracket Stainless steel
Net weight Horn 1.8 kg
Ingress protection Horn IP67
Max./Min. A temp. 40° C/-34° C.
Cable size 6-11.5 mm

KB-15 BASE: CM-15 “blackbox’’ control, with P541-07 microphone included
KB-15G TALKBACK: CM-15TB “blackbox’’ control, with P541-05 “Talkback’’ microphone included
KB-15W BLUETOOTH: CM-16 “bluetooth’’ control, with P541-07 “Talkback’’ microphone included
