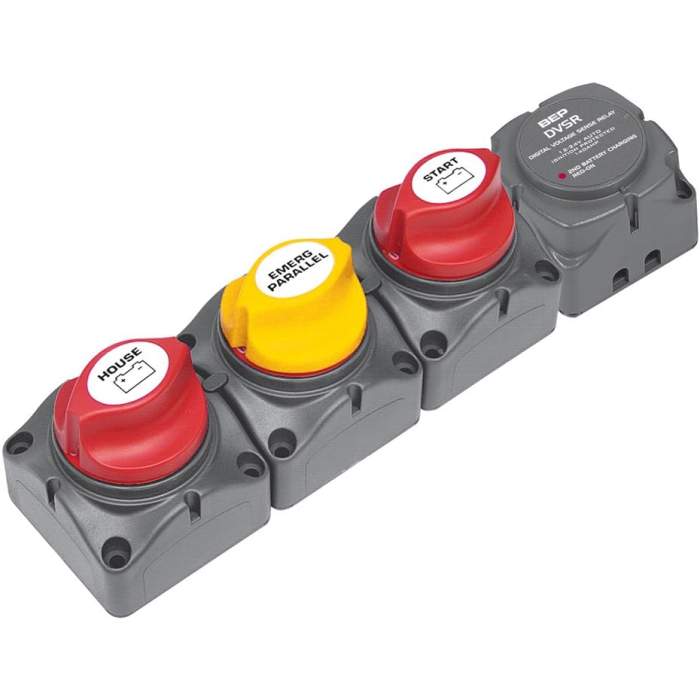

Horizontal Battery Distribution Cluster with DVSR for Single Engine Two Battery Banks

The BEP horizontal battery distribution cluster manages a single-engine electrical system with two battery banks. Its integrated Digital Voltage Sensing Relay automatically combines the banks when a charging voltage is present and separates them as voltage falls, allowing the secondary bank to be charged without leaving the starting battery permanently connected to the house bank.

• Configuration: Single engine with two battery banks
• Orientation: Horizontal
• DVSR continuous charging current: 125A
• Battery-switch continuous rating: 275A
• Dimensions: 276 x 69 x 75 mm
• Pre-wired internally with clearly identified connection points
