Heat Shrink Tube 1/8"x6" Black 10pc
Stock Status: In stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Description

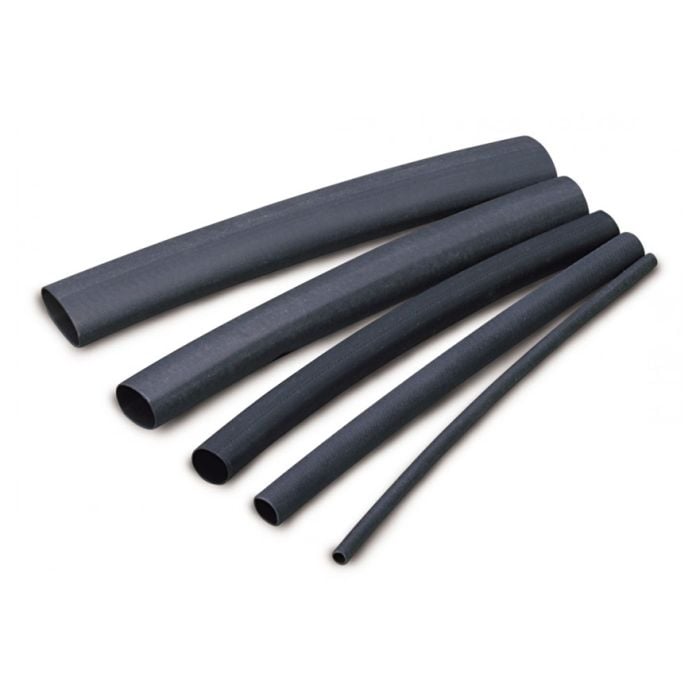

Heat Shrink Tubing, 1/8" x 6", Black, 10pc
301106
Package of 10 Black 6 in (15.2 cm) long sections with a 1/8 in (3.2 mm) diameter that shrinks to 1/32 in (0.8 mm)
• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC
• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief
• Highest shrink ratio - shrinks to 1/3 original size
• Shrinks at 257°F / 125°C
• Operating temperature range of -40°F to 230°F / -40°C to 110°C
• UL 224
General Specification
Adhesive lined tubing specifications (3:1 ratio)
| Size | Shrinks to | Wire range | |||
| inch | mm | inch | mm | AWG | mm² |
| 1⁄8" | 3.2 | 1⁄32" | 0.8 | <18 | < 0.8 |
