Ground plate 2.3 Kg 203 x 64 x 13 mm (for bonding, grounding & Loran use)

Marinco
AED 818.00 Excl. tax

Stock Status: In stock

EEPN 08.09.0002 | OEM 4008
Ground plate 3.2 Kg 305 x 76 x 13 mm (for bonding, grounding & Loran use)
Ground plate 3.2 Kg 305 x 76 x 13 mm (for bonding, grounding & Loran use)
EEPN: 08.09.0003
AED 1,309.00
In Stock
Ground plate 5.9 Kg 457 x 152 x 13 mm (for SSB radio)
Ground plate 5.9 Kg 457 x 152 x 13 mm (for SSB radio)
EEPN: 08.09.0004
AED 3,796.00
In Stock
Ground plate 1.4 Kg 152 x 51 x 13 mm (for bonding and grounding)
Ground plate 1.4 Kg 152 x 51 x 13 mm (for bonding and grounding)
EEPN: 08.09.0001
AED 455.00
In Stock

Download Document

Datasheet
document-text

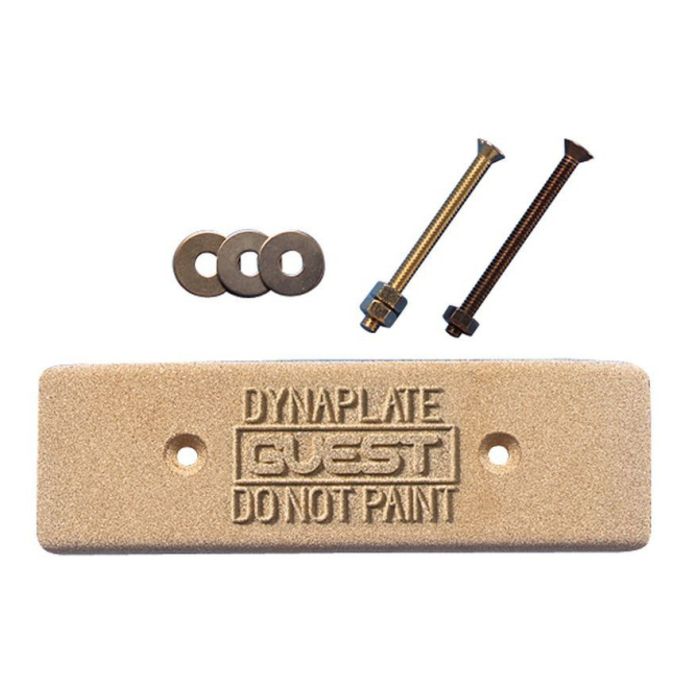

Description

  • Improves performance of electronics and reduces RF interference
  • Offers the best path for hull bonding without long runs of copper foil
  • Provides a direct, low resistance path for improved lightning protection
  • Deters electrolysis and galvanic corrosion
  • Sintered porous bronze sphere construction for maximum conductivity in a compact size
  • Low drag, non-fouling shape
  • Easy to clean with wire brush
  • Conforms to ABYC standards
  • Mounting hardware included
  • Gold plated mounting bolt
  • Bronze mounting nuts
  • Copper washers
cog

General Specification

Part number 08.09.0001 08.09.0002 08.09.0003 08.09.0004
Model 4006 4008 4012 4018
Type Standard Large Giant Super
Use for Bonding and grounding Bonding, grounding and Loran use Bonding, grounding and Loran use SSB radio
Dimensions 152 x 51 x 13 mm 203 x 64 x 13 mm 305 x 76 x 13 mm 457 x 152 x 13 mm
Mounting holes 2-½” center to center 4” center to center 6” center to center 9.875” center to center;3” top to bottom
Weight 1.4 kg 2.3 kg 3.2 kg 5.9 kg
