Fire Extinguishing System CG Series Fully Automatic 20.7 kg FK-5-1-12 Agent For Up To 850ft³/24m³
Stock Status: Out of stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Download Document
Description
Fire Extinguishing System CG Series Fully Automatic FK-5-1-12 20.7 kg For Up To 850ft³/24m³

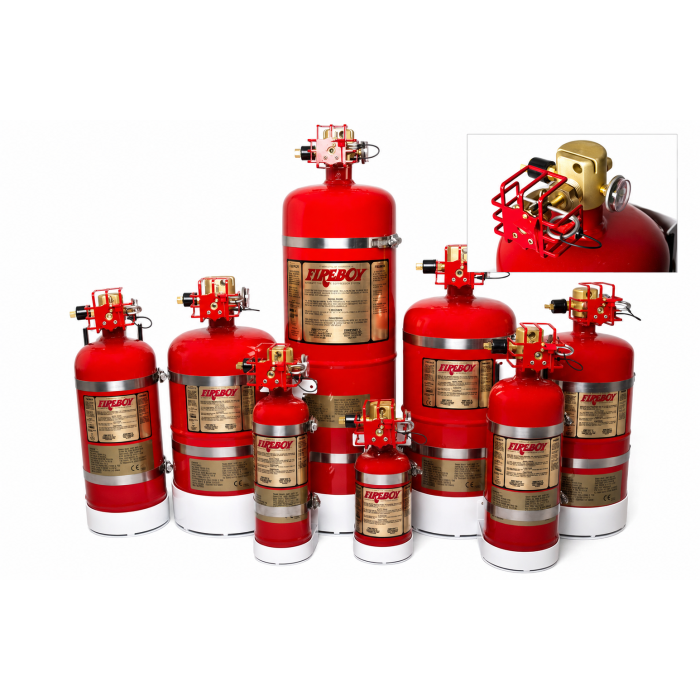

The Fireboy Xintex CG Series is a fixed, total-flooding fire extinguishing system designed to protect marine engine compartments and machinery spaces against Class B fires. It uses FK-5-1-12 clean extinguishing agent, which leaves no harmful residue following discharge. The system activates automatically when the temperature reaches 175°F (79°C). Each system is supplied with a heavy-duty powder-coated steel shelf bracket, helm display and owner’s manual. Fireboy CG Series systems are approved by Factory Mutual, the US Coast Guard and RINA, and are CE certified.
General Specification
| Part Number | 16.08.0025 |
| Model Number | CG0850NVC-F |
| Type | Fully Automatic |
| Volume Protected (ft³) | 850 |
| Volume Protected (m³) | 24 |
| Diameter (in.) | 10 |
| Diameter (mm) | 254 |
| Total height (in.) | 23 |
| Total height (mm) | 585 |
| Agent weight (lb) | 45.7 |
| Agent weight (kg) | 20.7 |
| System Pressure (@70° F) psi | 360 |
