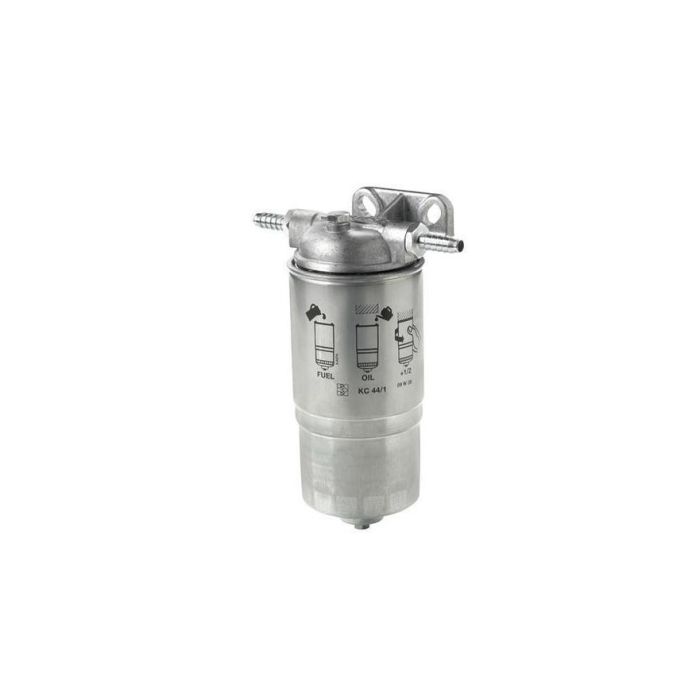

Filter/separator WS180 180Lph in-line filter 40 micron M14x1.5 connection (suitable for petrol & diesel)
Stock Status: In stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Description
Filter models WS180 and WS720 are suitable for both petrol and diesel fuels and comply with the fire resistance test according to ISO 1008. These water separator/filters should be installed as close as possible to the fuel tank and in a vertical position.
This water separator & petrol fuel filter is designed for use with outboard engines, but is also suitable as a pre-filter for inboard petrol engines. It can be fitted to petrol engines with a maximum output of 500 hp. The filter is supplied with all.
General Specification
| Max. capacity in l/hr (g/hr) | 120 (26) |
| Connecter fittings for hose | Ø 10 mm |
| Replacement filter 10 μm | 04.17.0050 (VTN32EB) |
| Dimensions | Length 157 mm, width 104 mm & depth 112 mm. |
| Weight | 1.3 kg |
| Replacement advice | After 200 service hours or at least once a year |
| Certified | Fire resistant ISO 1008 |
| Filter mesh | 10 micron |
