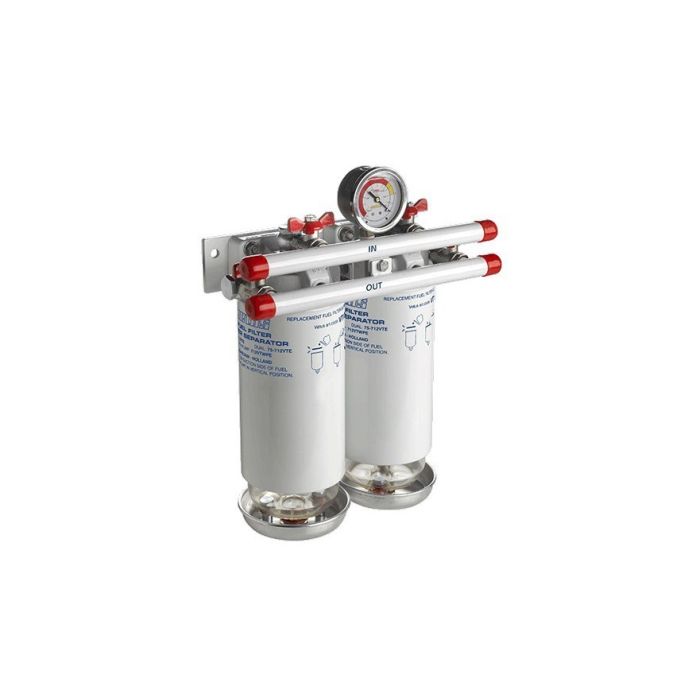

Filter/separator Diesel 75350VTEB "460Lph 2 in-line
Stock Status: Out of stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Description
For boats that sail offshore, Vetus strongly recommends these dual filter systems. In rougher sea conditions, dirt and water accumulated in the fuel tank becomes agitated and can rapidly clog the filter with little warning.
This may result in loss of engine power and all the dangers that may present. However, simply turning the changeover valve will switch over to the clean spare filter, without even having to stop the engine. These dual filters are supplied with a vacuum gauge as standard. When the gauge shows in the yellow zone (-0.2 to -0.38 kg/cm2), the recyclable filter element should be replaced.
General Specification
| Maximum capacity lph (gph) | 190 (42) | 380 (84) | 460 (102) | ||||||
| Model | 330VTEB | 330VTEPB | 75330VTEB | 340VTEB | 340VTEPB | 75340VTEB | 350VTEB | 350VTEPB | 75350VTEB |
| Version | single | with pump | double | single | with pump | double | single | with pump | double |
| Connections | M16 x 1.5 * | M16 x 1.5 * | R½ | M16 x 1.5 * | M16 x 1.5 * | R½ | M16 x 1.5 * | M16 x 1.5 * | R½ |
| Height (mm) | 205 | 205 | 305 | 265 | 265 | 365 | 325 | 325 | 425 |
| Width (mm) | 120 | 120 | 310 | 120 | 120 | 310 | 120 | 120 | 310 |
| Depth (mm) | 120 | 120 | 167 | 120 | 120 | 167 | 120 | 120 | 167 |
| Weight (kg) | 1.3 | 1.3 | 4.7 | 1.45 | 1.45 | 5 | 1.6 | 1.6 | 5.3 |
| Replacement filter: - 10 μm (standard) - 30 μm (standard) |
VT33EB VT33ER | VT33EB VT33ER | 2 x VT33EB 2 x VT33ER |
VT34EB VT34ER | VT34EB VT34ER | 2 x VT34EB 2 x VT34ER |
VT35EB VT35ER | VT35EB VT35ER | 2 x VT35EB 2 x VT35ER |
| Replace filter | When vacuum gauge indicates between -0.2 and- 0.38 kg/cm², or once a year | ||||||||
