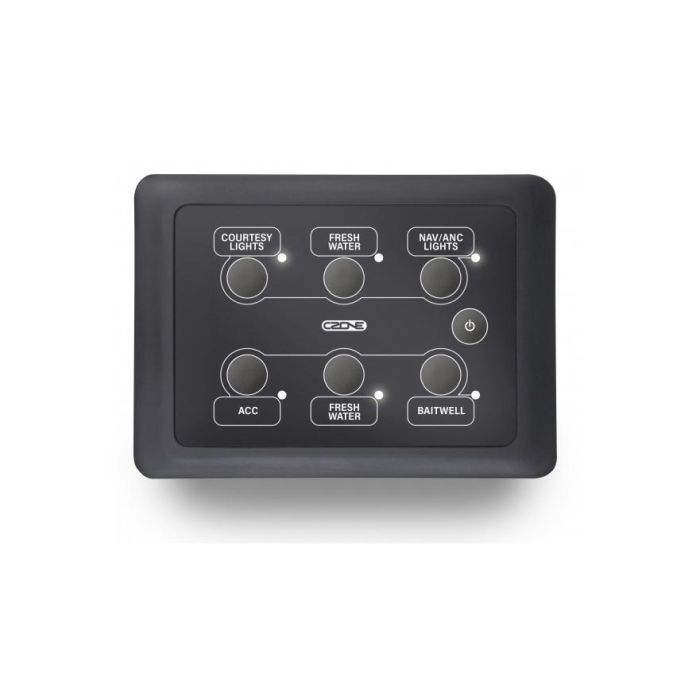

CZone waterproof keypad 3x2 landscape
Stock Status: In stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Download Document
Description
The CZone Waterproof Keypad range features dimmable RGB circuit backlighting in a robust IPx7 waterproof enclosure and is available in landscape orientation.
Simplify dashboard installations by removing wiring clutter with a single network cable. Front mount installation with a single 52 mm (2.05 inch) hole saw, or rear mount to achieve a flat mount glass dash style look. The Keypads are shipped with a standard label sheet for personalised circuit labeling.
- IPx7 submersible.
- Circuit in operation LEDs with blown fuse fault indication.
- Dimmable RGB circuit backlighting.
- Low profile with 3 mounting options - front, rear and flush mount.
- Easy hole saw installation with single plug connection.
General Specification
The CZone Waterproof Keypad range features dimmable RGB circuit backlighting in a robust IPx7 waterproof enclosure and is available in landscape orientation.
Simplify dashboard installations by removing wiring clutter with a single network cable. Front mount installation with a single 52 mm (2.05 inch) hole saw, or rear mount to achieve a flat mount glass dash style look. The Keypads are shipped with a standard label sheet for personalised circuit labeling.
- IPx7 submersible.
- Circuit in operation LEDs with blown fuse fault indication.
- Dimmable RGB circuit backlighting.
- Low profile with 3 mounting options - front, rear and flush mount.
- Easy hole saw installation with single plug connection.
|
NMEA 2000 connectivity |
1 x CAN Micro-C port |
|
Interface |
keypad |
|
Backlight color |
RGB LED with dimming |
|
Supply voltage |
9-16 V via CAN |
|
Mounting |
front and rear mount |
|
Protection degree |
IPx7 |
|
Dimensions, hxwxd |
77 x 107 x 32 mm |
|
Weight |
CE, ABYC, NMEA, ISO8846/SAEJ1171 Ignition Protected |
