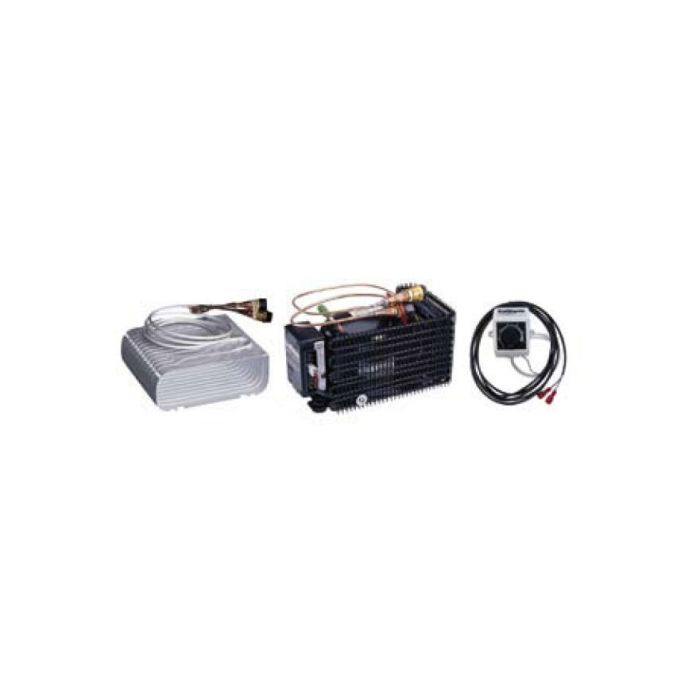

Cooling unit compact "2007" 100L fridge or 33L freezer 12/24V air cooled small-L evaporator
Stock Status: Out of stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Description
The Danfoss compressors are even more power efficient. Hermetically sealed, they operate in a mixture of oil and refrigerant which contributes to extremely quiet running and very little fatigue of material. All compressors used for Isotherm applications run on a three phase electric system, just as allother high efficiency electric engines. The three-phase current is created in a small microprocessor. In this ”computer” Indel Webasto Marine has been able to programme a number of functions which check and control many of the unit systems. This allows achieving the lowest possible power consumption. The same compressor is used for both 12V and 24V systems, and the electronic unit is able to protect itself from accidental reversal of the voltage polarity.
- Fridge or freezer use
- 12/24V Danfoss compressor
- Universal kit ac/dc optional for a complete power supply compatibility (12/24V, 230/115V and 50/60 Hz)
- Easy installation thanks to “click-on” system
General Specification
| Part number | Model | Fridge max vol. (l) |
Evaporator type |
Freezer max vol.(l) |
Dimensions evaporator L x W x H (mm) |
Dimensions compressor L x W x H (mm) |
Weight (kg) |
Consumption* W/24 hours |
Compressor Type |
Temp. range** |
| 12.08.0012 | 2001 | 125 | Small-O | 41 | 240 x 85 x 210 | 270 x 160 x 155 | 9 | 350 | BD35F | Fridge or Freezer |
| 12.08.0013 | 2301 | 150 | Medium -O | 50 | 320 x 100 x 230 | 270 x 160 x 155 | 9 | 370 | BD35F | Fridge or Freezer |
| 12.08.0014 | 2501 | 200 | Large-O | 66 | 380 x 140 x 270 | 315 x 160 x 155 | 9 | 500 | BD50F | Fridge or Freezer |
| 12.08.0015 | 2005 | 60 | Small-flat | 20 | 350 x 130 | 270 x 160 x 155 | 9 | 300 | BD35F | Fridge or Freezer |
| 12.08.0016 | 2007 | 100 | Small-L | 33 | 250 x 110 x 350 | 270 x 160 x 155 | 9 | 335 | BD35F | Fridge or Freezer |
| 12.08.0017 | 2010 | 125 | Large-L | 41 | 410 x 185 x 210 | 270 x 160 x 155 | 9 | 350 | BD35F | Fridge or Freezer |
| 12.08.0018 | 2012 | 170 | Flat | 56 | 815 x 210 | 315 x 160 x 155 | 11 | 390 | BD50F | Dual |
| 12.08.0019 | 2016 | 200 | Flat | 66 | 1200 x 190 | 315 x 160 x 155 | 12 | 500 | BD50F | Dual |
| 12.08.0020 | 2017 | 260 | Flat | 86 | 1000 x 270 | 315 x 160 x 155 | 12 | 650 | BD50F | Dual |
| 12.08.0021 | 2013 | 400 | Large-flat | 133 | 1370 x 300 | 315 x 160 x 155 | 12 | 1000 | BD50F | Dual |
* Power consumption in operation (12 Volt) with +5 °C in the refrigeration space, with ambient/water temperature of +25 °C and medium sized insulation
** Temperatures range: from +2 °C to -18 °C. Reduce recommended box volume with 10 – 20 % for tropical conditions. Specification changes may be made without prior notice. Dual can operate both as a fridge or a freezer by setting the temperature with a special thermostat
***12/24 V + Kit AC/DC 115/230 V
