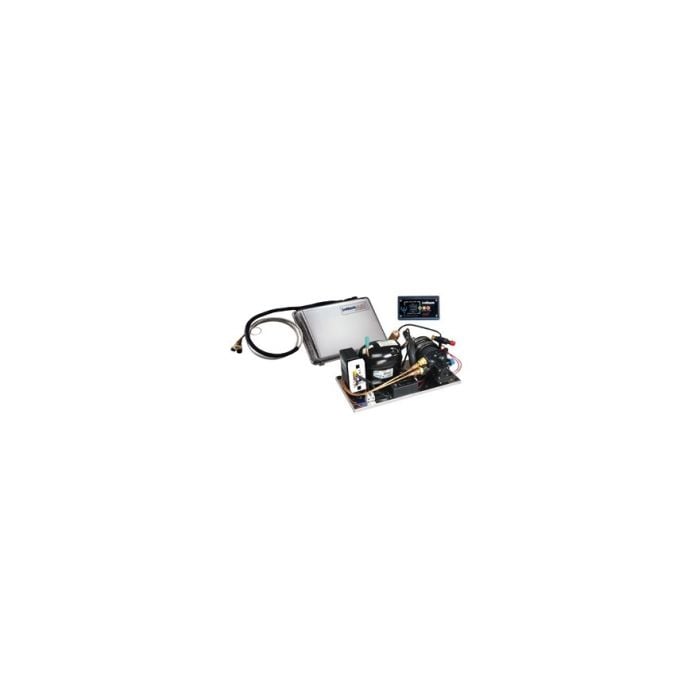

Cooling unit "5802" 325L fridge or 105L freezer 12/24V Magnum sea water cooled with ASU
Stock Status: Out of stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Description
The ASU technology detects when a surplus of power is available, uses this power to freeze the cooling plate which consequently stores the cold for times, when no power is available for cooling purposes. A high-quality Danfoss compressor builts the core of the patented ASU ”Automatic Start Up” electronic control system. Together with the Isotherm holding plate they are an unbeatable combination.
- Fridge or freezer use
- 12/24V Danfoss compressor
- Universal kit ac/dc optional for a complete power supplycompatibility (12/24V, 230/115V and 50/60 Hz)
- Easy installation thanks to “click-on” system
- Self-priming sea water pump to ensure extra high efficiency for tropical applications
- Variable speed water pump according to the temperature of the condenser
General Specification
| Part number | Model | Fridge max volume (l) |
Freezer max volume (L) |
Dimensions evaporator L x W x H (mm) |
Dimensions compressor L x W x H (mm) |
Weight (kg) |
Consumption* W/24 hours | Compressor type | Temp. range** |
| 12.08.0005 | 4201 | 200 | 65 | 355 x 280 x 60 | 390 x 200 x 175 | 19 | 300 | BD50F | Fridge or Freezer |
| 12.08.0006 | 4701 | 250 | 80 | 355 x 280 x 90 | 390 x 200 x 175 | 23 | 380 | BD50F | Fridge or Freezer |
| 12.08.0007 | 4901 | 400 | 130 | 530 x 325 x 117 | 440 x 220 x 175 | 32 | 600 | BD80F | Fridge or Freezer |
| 12.08.0043 | 5302 | 260 | 85 | 355 x 280 x 90 | 525 x 225 x 175 | 27 | 4002 | BD50Fx | Fridge or Freezer |
| 12.08.0044 | 5802 | 325 | 105 | 400 x 320 x 90 | 525 x 225 x 175 | 30 | 460 | BD50Fx2 | Fridge or Freezer |
* Temperatures range: from +2 °C to -18 °C. We recommend reducing the box volume by 10 – 20 %, in tropical conditions.
Specification changes may be made without prior notice
