Cluster 714-140A-DVSR for battery distribution
Stock Status: In stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Download Document
Description

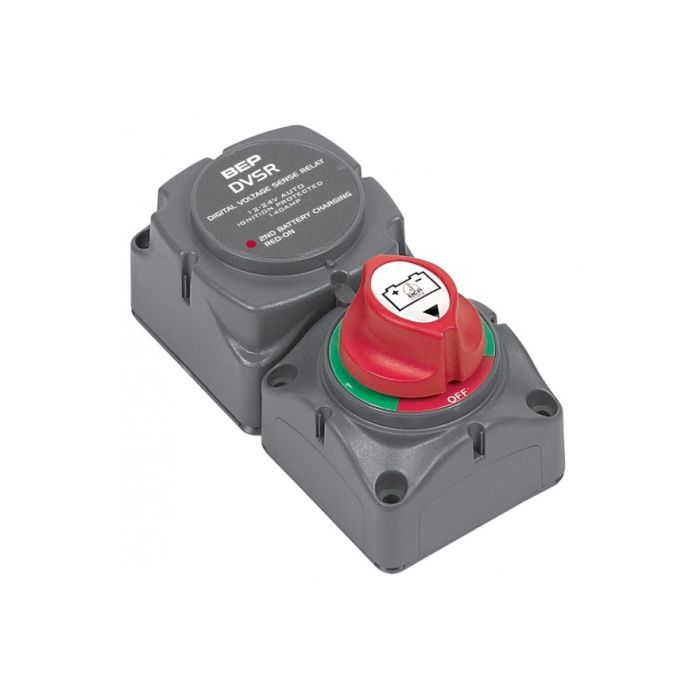

Battery Distribution Cluster for Single Engine with Two Battery Banks
714-140A-DVSR
The 714-140A-DVSR uses a dual sensing DVSR (710-140A). This system ensures that you will always have a fully charged reserve battery. When the switch is in position one, battery one becomes the sensing battery for the VSR. Battery two, which is in isolation, is charged through the VSR when the engine is running to ensure that it is always fully charged. When the switch is in position two, battery two becomes the sensing battery and battery one is charged through the VSR. The fact that there is always a fully charged battery in reserve is a huge safety benefit.
-Number of Battery Banks: Two
General Specification
| Part number | 08.10.0025 |
| Model | 714-140A-DVSR |
| Engine type | Single inboard or outboard |
| Battery (banks) | 2 |
| L x W x 75 (mm) | 138 x 69 |
| VSR charging current: 150A, Battery switch rating: 275A | |
