Bus bar (negative) for ATC/ATO fuse holder 08.11.0103 & 08.11.0104

ATO/ATC fuse holders & bus bar, 80-712-0039-00, Pack of 1 pc

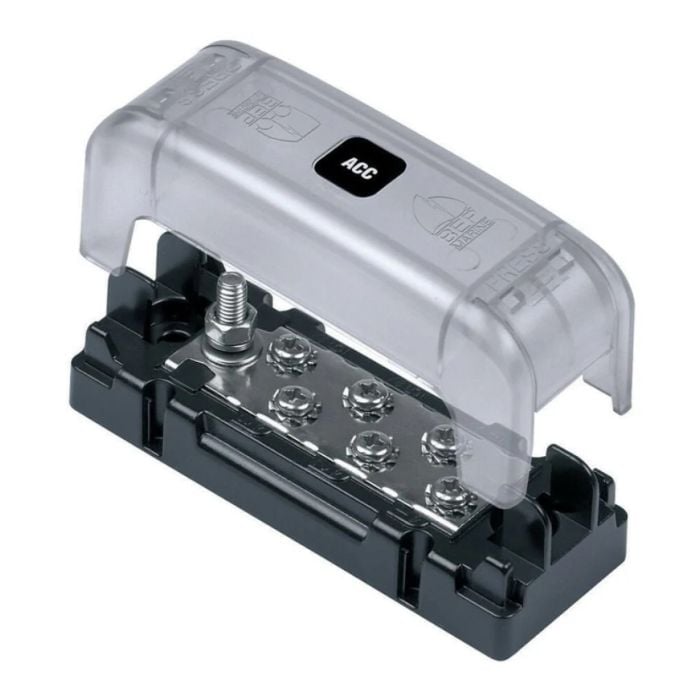

6 Way bus, without fuse w/ 5 mm input stud, cover, joiners

The BEP™ ATC fuse holder provides compact, easy access to fuses with the design integrity only BEP can offer.
• Allows for multiple fuse holders and bus bars to be joined together, increasing the number of circuits protected
• Fuse holder inputs can be linked together to form a single continuous fuse holder
• Includes patented contour lock system, see-thru clip-on cover and label set
• Available with screw terminals or quick connect terminals
- Max. current/circuit: 30A;
- Max. current/block: 100A;
- Max. voltage: 32V dc;
- Base & cover material: polycarbonate
• Positions for spare fuses
• ATC fuse holder: 80 x 90 x 47 mm (3.1” x 3.6” x 1.9”)
• ATC bus bar: 35 x 90 x 47 mm
