Breaker C series 75A 1 pole Black 240VAC 80VDC White actuator

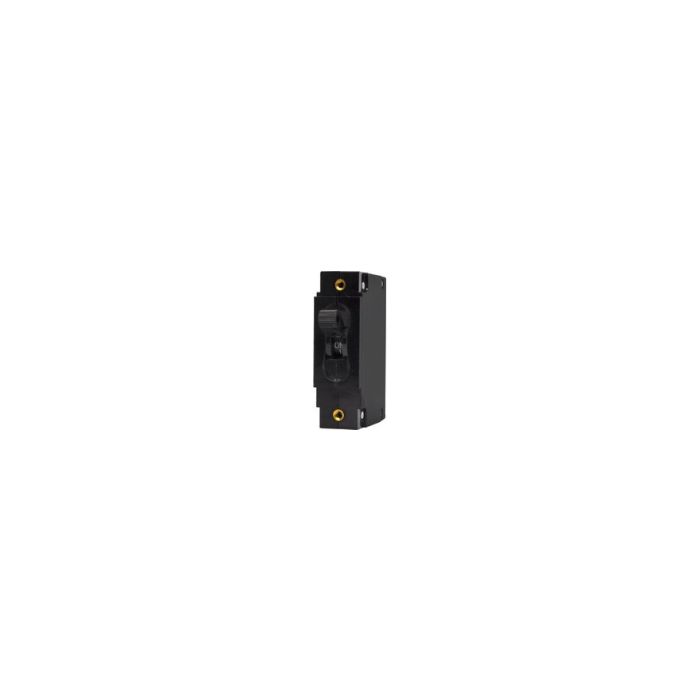

C-Series circuit breaker, Single pole - Black, 75A

C SERIES, One Handle Per pole, Series Trip (Current), DC & AC Medium
Delay, 1/4 -20 Threaded stud, 6.32 x 0.195 Inch Mountings, -40°C - +85°C, 80V
DC, 250V 50/60 Hz, EN60934, VDE, UL and CSA.
The C-Series hydraulic-magnetic circuit breakers are ideal for applications
that require higher amperage and voltage handling capability in a smaller
package. The C-Series employs a unique arc chute design which allows for
higher interrupting capacities. New thermoset glass filled polyester half shell
construction provides for increased mechanical and electrical strength. The
wiping contacts, mechanical linkage with two step actuation, clean contacts
providing high, positive contact pressure and longer contact life. Available in a
wide range of ratings with 1, 2 or 3 poles.

Applications:
• Marine, Power supplies, Medical Equipment, Office Equipment, Control
Panels, Military, Generator & Welders
• Optional choices include 1-6 poles, 0.02-100amps ratings, UL Recognized up
to 480VAC or 150VDC, UL489 Listed up to 240VAC or 125VDC, with choice
of time delays, terminal options, actuator styles and colours.
