Breaker B series 25A Black 1 pole up to 277VAC 80VDC

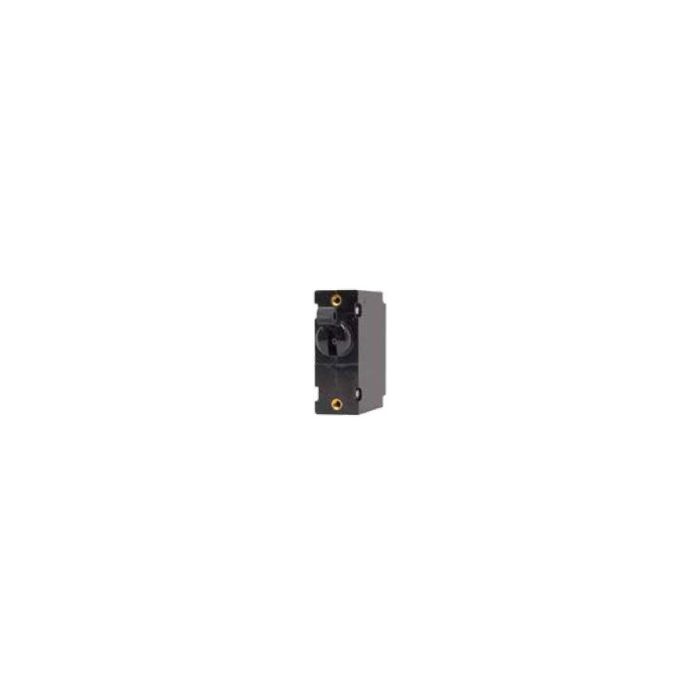

B-Series Single Pole Circuit Breaker, with Black toggle, 25A

B SERIES, One Handle Per pole, Series Trip (Current), DC & AC Medium Delay, Under 30A 8-32 Bus Type Screw 30A Over 10-32 Bus Type Screw, 6.32 x 0.195 Inch Mountings, -40°C - +85°C, Max 80V DC, 277V 50/60 Hz AC, EN60934, VDE, UL and CSA. Carling Technologies’ B-Series hydraulic magnetic circuit breakers are specifically designed for applications requiring extra insulation and tongue and groove half-shell constructions. The B-Series carries global regulatory safety approvals for spacing requirements and are ideal for use as general purpose as well as full load amp applications.

Applications:
Marine, Power supplies, Medical Equipment, Office Equipment, Control Panels, Military, Generator & Welders (Meets CSA Standard 22.2 No. 100). Options are available with various choices of time delays; terminals; actuator styles; with a wide range of standard colours; 1-6 poles; ratings from 0.02 to 50 amps, up to 277VAC or 80VDC; UL recognized, CSA, VDE, TUV, UL-1500, UL489A Listed.
