Battery switch 720 600A 48V On/Off
Stock Status: In stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Download Document
Description

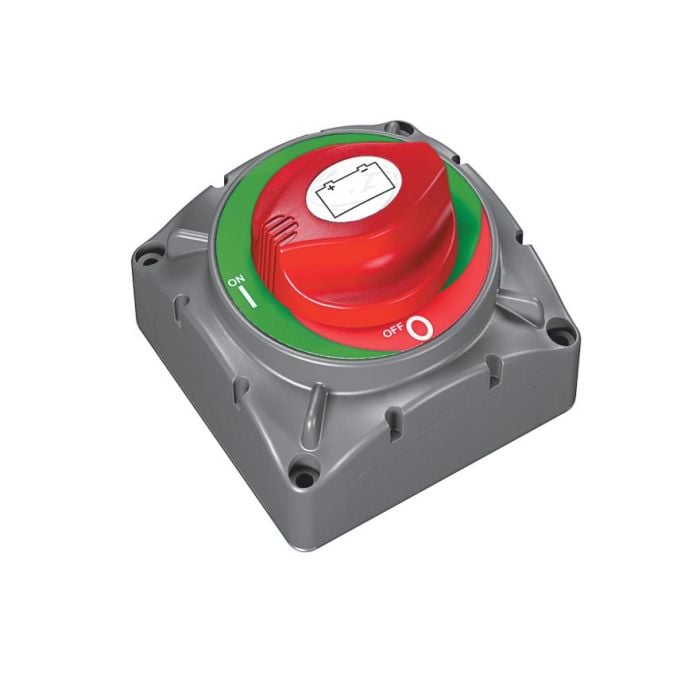

Heavy Duty Battery Switch - 600A Continuous
720
The 720 Heavy-duty Battery Switch fits into the same contour lock system as used on the battery distribution system.
Rated at 600A continuous and 2500A cranking. It is well suited to larger vessels.
As with the 701, the 720 can be recessed or surface mounted.
The 720 uses the same style of self cleaning sliding contact as used in the 701 and uses the same label sheet.
General Specification
| Part number | 08.10.0006 |
| Model | 720 |
| L x W x H (mm) | 102 x 102 x 90 |
| Continuous Current rating (dc) | 600 |
| Intermittent Current rating (dc) | 800 |
| Cranking Current rating (dc) | 2500 |
| Voltage (V dc) | 48 |
| Operation | On/Off |
| Stud size Studs x (mm) |
2 x 12 |
