Battery switch 700 Easyfit On/Off 275A 48V

AED 234.00 Excl. tax

Stock Status: In stock

EEPN 08.10.0003 | OEM 700

Download Document

document-text

Description

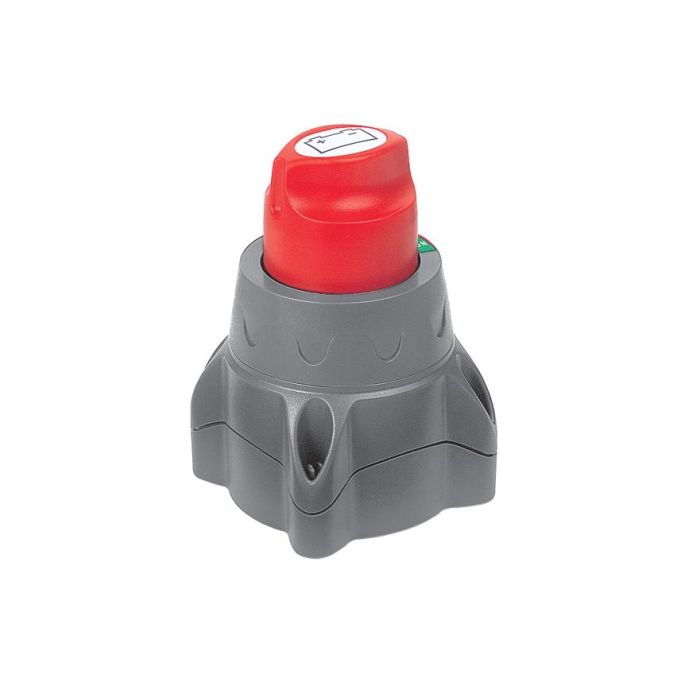

Easy Fit Battery Switch, 275A Continuous
700

The Easyfit Battery Switch was created for installations where switches need to be recessed through varying thicknesses of panels. It achieves this through an easily removable threaded ring that allows for panel thicknesses up to 3/4" (19 mm). This switch uses the same features as the 701 with the removable key 45 degree past the off position, labeled handle and a removable back cover covering exposed terminals to meet ABYC specifications. It can also be surface mounted offering a unique style compared to other switches available on the market. BEP Marine Battery Switch Test Procedures (UL 1107) Continuous (1 hour), intermittent (5 minutes) and Cranking (engine starting - 10 seconds). The test is to determine the maximum current the switch can handle for the stated time, without the rear terminals exceeding 100 deg C (212 deg F) above the ambient temperature. The continuous and intermittent ratings are tested at 110 percent of specified ratings. All BEP switches are tested Independently to this specification by a 3rd party laboratory.

-Can easily be retro-fitted in place of most European post and lever type switches
-Molded in high temperature, fiber reinforced plastics
-Tin-plated copper studs and nuts
-Ignition-protected

cog

General Specification

Part number 08.10.0003
Model 700
L x W x H (mm) 68 x 68 x 110
Continuous Current rating (dc) 275
Intermittent Current rating (dc) 455
Cranking Current rating (dc) 1250
Voltage (V dc) 48
Operation on/off
Stud size
Studs x (mm)
2 x 10
