Autopilot pump fitting kit for ORB with Steady Steer

The ORB Hose Fitting Kit for MKII Pumps 1 through 5, including SteadySteer, is designed to enhance the performance and reliability of your marine autopilot system. This comprehensive kit features high-quality ORB (O-Ring Boss) hose fittings, which ensure a secure, leak-proof connection between your hydraulic steering system and the autopilot. These fittings are engineered to withstand the rigors of marine environments, including exposure to saltwater, high pressure, and temperature extremes, ensuring long-lasting durability. One of the key benefits of this kit is its compatibility with SteadySteer, a feature that allows for immediate manual control of your vessel without disengaging the autopilot. This integration ensures that you can take manual control when needed, while still benefiting from the autopilot’s assistance during routine navigation. The fittings in this kit are constructed from corrosion-resistant materials, providing reliable performance and minimizing maintenance needs. Installation is straightforward, thanks to the kit's design, which does not require specialized tools or extensive technical expertise. This ease of installation means you can quickly set up the fittings and get your autopilot system up and running with minimal downtime. The ORB hose fittings ensure optimal steering control, which is crucial for accurate navigation and the overall safety of your vessel.
Compatible with

• NAC-2, NAC-3 (sw version 1.1.05 and newer), NAC-D (sw version 1.0.01.01 and newer) AP44, ---IS42, and AP48 (sw version 57.3.163 or newer), Simrad MFDs (sw version 20.2 or newer)

• Requires AP44, IS42, or AP48 to work with select, older Simrad MFDs

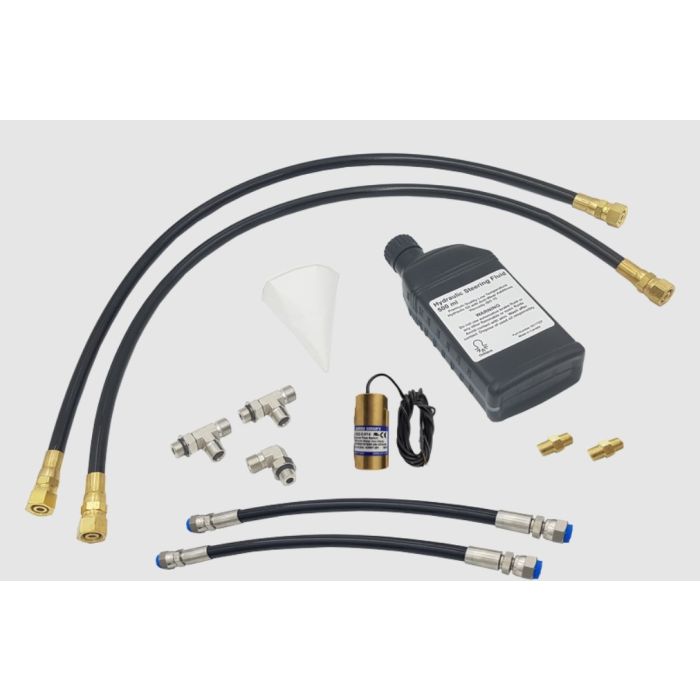

Comes with

• 2 x Hoses 5/16" dia. (Black): 1500 PSI max, 810 mm (31.9") 9/16-18 UNF to 9/16-18 UNF

• 2 x Hoses 5/16" dia. (Black): 1500 PSI max, 360 mm (14.2") 9/16-18 UNF to 9/16-18 UNF

• 2 x T Connectors: 9/16-18 UNF < ORB-05M > 9/16-18 UNF

• 1 x Right angle connector: ORB-05M to 9/16-18 UNF

• 2 x ¼ NPT to 9/16-18 UNF Adaptor

• 1 x Steady Steer Flow Sensor

• 1 x Bottle of Hydraulic Fluid

• 1 x Filter Funnel

• 1 x Manual PN:988-12851-00
