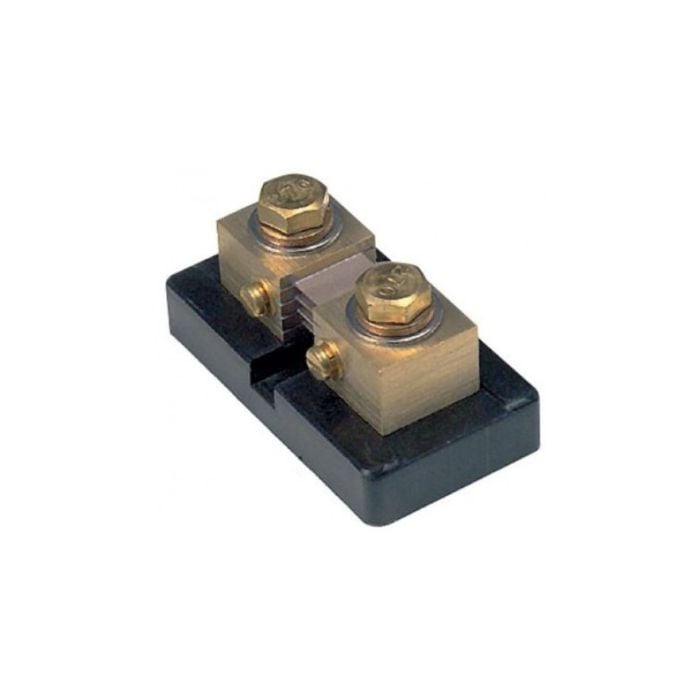

Ammeter analog shunt 150A 50mV (small)

Shunts are required when using both analogue and digital ammeters. Main negative supply wire is cut and shunt inserted in line. Type (A) mini shunts are used with analogue meters and type (B) with the digital meters. All rated at 50mv for full scale deflection. Specifications: Mount screws: 5 r/h Meter screws: 4mm Picture: A Height: 43mm Base Dim: 51x32mm Main Stud: 6mm Amp Rating: 150
