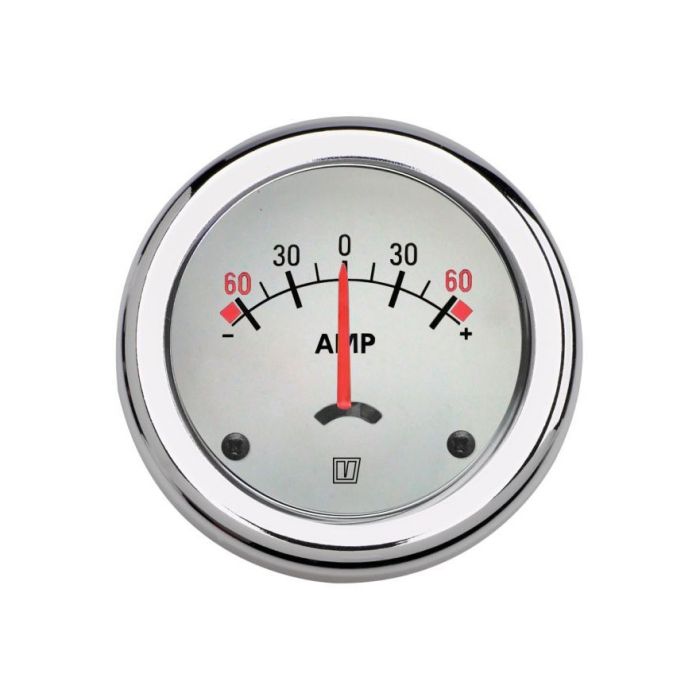

Ammeter AMPWL white 12/24V (+/- 60A) cut-out Dia. 52 mm with built-in shunt

The Ammeter is used to check whether the batter is being charged by the dynamo (the pointer swings to the right), or whether it is being discharged by the electrical equipment current consumption (pointer swings to the
left). The ammeter with a maximum range of +/- 60 Amps is suitable for dynamos with a maximum charge current of
60 Amps. The ammeter with a range of +/- 100 Amps is suitable for dynamos which can generate a maximum charge current of 100 Amps. The ammeter can be connected to either a 12 or 24 Volt
system, with negative earth or unearthed (2-pole).

Scale calibration: ± 60 A, for 12V or 24V dc, with shunt incorporated. This ammeter is also available with scale calibration of ± 100 A, with a separate shunt.
