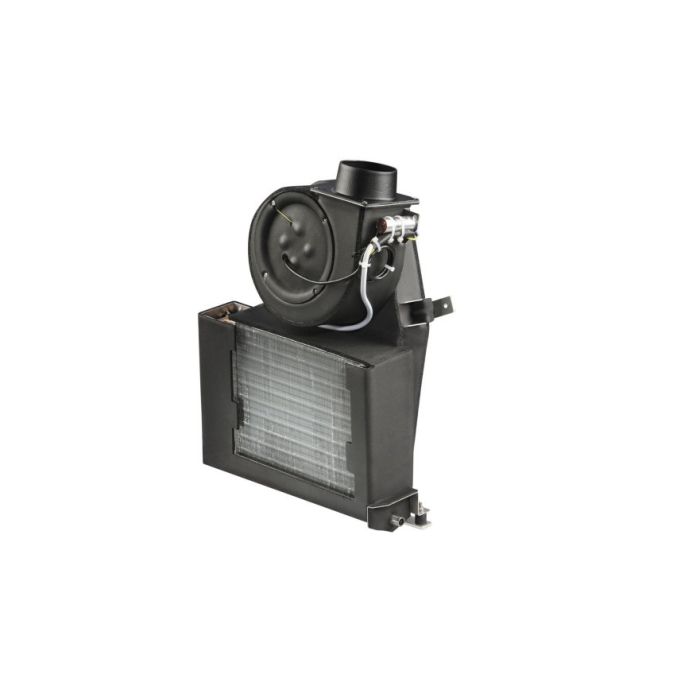

Air handler A6 slimline 6000 BTU 230V 50Hz

Webasto
AED 6,426.00 Excl. tax

Stock Status: Out of stock

EEPN 05.02.0189 | OEM WBCL1209001A
Air handler A12 slimline 12000 BTU 230V 50Hz
Air handler A12 slimline 12000 BTU 230V 50Hz
EEPN: 05.02.0191
AED 7,678.00
Out of Stock
Air handler A9 slimline 9000 BTU 230V 50Hz
Air handler A9 slimline 9000 BTU 230V 50Hz
EEPN: 05.02.0190
AED 7,052.00
Out of Stock
Air handler A18 slimline 18000 BTU 230V 50Hz
Air handler A18 slimline 18000 BTU 230V 50Hz
EEPN: 05.02.0192
AED 9,694.00
Out of Stock
document-text

Description

Webasto Air handler A6 slimline 6000 BTU 230V 50Hz

cog

General Specification

Part number 05.02.0189 05.02.0190 05.02.0191 05.02.0192
                             - A6 Slimline A9 Slimline A12 Slimline A18 Slimline
Capacity(BTU/h)** 6,000 9,000 12,000 18,000
Capacity (kW) ** 1.9 2.8 3.6 5.6
Air flow (m³ / h) * 380 420 560 750
Ø Blower connection (mm) 125 (round) 125 (round) 150 (oval) 150 (oval)
Weight (kg) 7 9 10 12
Current draw running (A) 0.5 0.6 0.7 1.1
Ø Chilled water connection 3/4'' 3/4'' 3/4'' 3/4''
Dimensions H x W x L (mm) 588 x 217 x 411 611 x 217 x 456 619 x 217 x 494 666 x 218 x 581
Dimensions with valve H x W x L (mm) 588 x 217 x 479 611 x 217 x 524 619 x 217 x 559 666 x 218 x 649
Minimum chilled water flow (l / h) 406 626 568 793
Number of blowers 1 1 1 1
Max. ambient temperature (°C) 50 50 50 50
Pressure loss chilled water (bar) 0.12 0.15 0.14 0.16
Number of condensate drains 2 2 2 2
Ø Condensate drain (mm) 16 16 16 16

 * With 2 m of air duct, one 90° bend, air outlet grille at 230V , 50 Hz ** Intake air of 32 °C / 47 % rh, water inlet temperautre of 5 °C and at 230 V, 50 Hz
