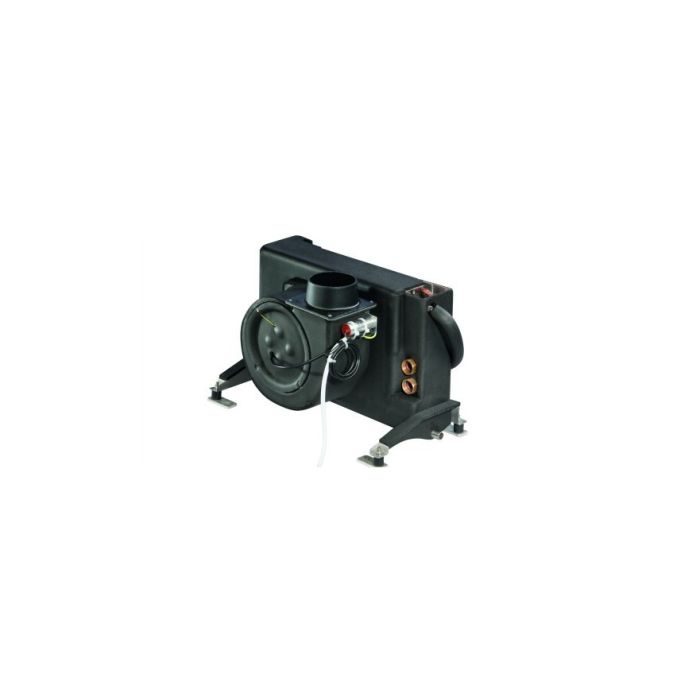

Air handler A6 Compact 6000 BTU 230V 50Hz

Webasto
AED 4,862.00 Excl. tax

Stock Status: In stock

EEPN 05.02.0179 | OEM WBCL1209010A
Air handler A9 Compact 9000 BTU 230V 50Hz
Air handler A9 Compact 9000 BTU 230V 50Hz
EEPN: 05.02.0180
AED 5,419.00
In Stock
Air handler A18 Compact 18000 BTU 230V 50Hz
Air handler A18 Compact 18000 BTU 230V 50Hz
EEPN: 05.02.0182
AED 6,913.00
Out of Stock
Air handler A36 Compact 36000 BTU 230V 50Hz
Air handler A36 Compact 36000 BTU 230V 50Hz
EEPN: 05.02.0184
AED 12,787.00
In Stock
Air handler A12 Compact 12000 BTU 230V 50Hz
Air handler A12 Compact 12000 BTU 230V 50Hz
EEPN: 05.02.0181
AED 5,905.00
In Stock
Air handler A4 Compact 4000 BTU 230V 50Hz
Air handler A4 Compact 4000 BTU 230V 50Hz
EEPN: 05.02.0178
AED 4,480.00
Out of Stock
Air handler A24 Compact 24000 BTU 230V 50Hz
Air handler A24 Compact 24000 BTU 230V 50Hz
EEPN: 05.02.0183
AED 8,616.00
Out of Stock
document-text

Description

Webasto Air handler A6 Compact 6000 BTU 230V 50Hz

cog

General Specification

Part number 05.02.0178 05.02.0179 05.02.0180 05.02.0181 05.02.0182  05.02.0183  05.02.0184
           - A4 Compact A6 Compact A9 Compact A12 Compact A18 Compact  A24 Compact  A36 Compact
Capacity(BTU/h)** 4,000 6,000 9,000 12,000 18,000  24,000  36,000
Capacity (kW) ** 1.2 1.9 2.8 3.6 5.6  7.2  10.7
Air flow (m³ / h) * 230 380 420 560 750  1120  1550
Ø Blower connection (mm) 100 (round) 125 (round) 125 (round) 150 (oval) 150 (oval)  2 x 150 (oval) 2 x 150 (oval)
Weight (kg) 6 7 9 10 12  16  21
Current draw running (A) 0.6 0.5 0.6 0.7 1  1.3  2.1
Ø Chilled water connection 3/4'' 3/4'' 3/4'' 3/4'' 3/4''  3/4''  3/4''
Dimensions H x W x L (mm) 287 x 249 x 381 287 x 280 x 411 312 x 291 x 456 312 x 279 x 491 362 x 281 x 581 362 x 301 x 636 487 x 302 x 701
Dimensions with valve H x W x L (mm) 287 x 249 x 381 287 x 280 x 411 312 x 291 x 456 312 x 279 x 491 362 x 281 x 581 362 x 301 x 636 487 x 302 x 701
Minimum chilled water flow (l / h) 228 406 626 568 793  1,257  1,883
Number of blowers 1 1 1 1 1  2  2
Max. ambient temperature (°C) 50 50 50 50 50 50 50
Pressure loss chilled water (bar) 0.07 0.12 0.15 0.14 0.16  0.13  0.34
Number of condensate drains 2 2 2 2 2 2 2
Ø Condensate drain (mm) 16 16 16 16 16 16 16

* With 2 m of air duct, one 90° bend, air outlet grille at 230V , 50 Hz ** Intake air of 32 °C / 47 % rh, water inlet temperautre of 5 °C and at 230 V, 50 Hz

Press to skip carousel

More from Webasto

T piece reducing 28 x 22 x 28 mm Price per piece
In stock
Webasto
T piece reducing 28 x 22 x 28 mm Price per piece
Special Price AED 104.65
35% OFF |
Regular Price AED 161.00
EEPN 05.04.0140 OEM WBCL010345B
T piece reducing 28 x 22 x 28 mm Price per piece
Hose connector F 28 mm x 1" Price per piece
In stock
Webasto
Hose connector F 28 mm x 1" Price per piece
Special Price AED 73.45
35% OFF |
Regular Price AED 113.00
EEPN 05.04.0155 OEM WBCL010323B
Hose connector F 28 mm x 1" Price per piece
Connector tap bent 15 x 1/2" Price per piece
In stock
Webasto
Connector tap bent 15 x 1/2" Price per piece
AED 56.00
EEPN 05.04.0134 OEM WBCL010328B
Kit cabin control Ultimate (Master) for network of BlueCool A-Series air handlers
In stock
Webasto
Kit cabin control Ultimate (Master) for network of BlueCool A-Series air handlers
AED 6,009.00
EEPN 05.02.0243 OEM 2510197A
Pump WB500G 18 Lpm 230 V 1 Ph 50 Hz self priming Bronze
In stock
Webasto
Pump WB500G 18 Lpm 230 V 1 Ph 50 Hz self priming Bronze
AED 4,638.00
EEPN 04.22.0002 OEM WBCL001305A

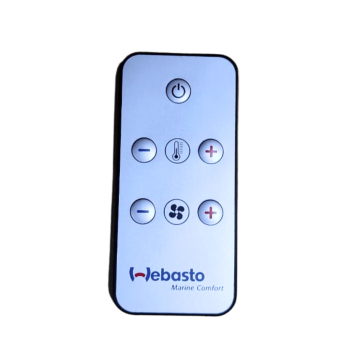

Remote Control IR
