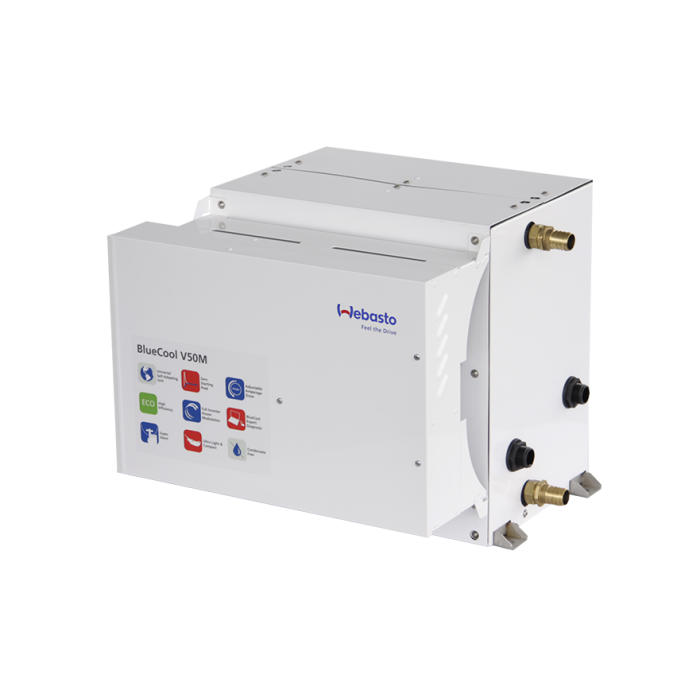

Air conditioner V50M 8500-50000BTU 230V 50/60Hz (V50 M-R-230V-REV- R410a) BlueCool V series chiller unit
Stock Status: Out of stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Description
• New V64 T and V77 T with innovative hybrid control logic
• Large power modulation range: 8,500 up to 77,000 BTU
• Unique hybrid concept reduces output by 89% during part load operation.
• Variable speed BLDC compressors controlled by inverter technology
• Zero electrical starting peak
• Super quiet operation with little noise variations and sound cover housing
• High system availability via dynamic control of HP / LP boundary conditions
• Preventive maintenance monitoring system
• Condensate free operation
• Easy installation and maintenance
• Low service and operation costs
• Light and compact
• Integrates Webasto s BlueCool Expert diagnosis and set up tool
• Up to 3 ECO modes with adjustable amperage draw
• 230 V 50 Hz or 240 V 60 Hz compatible for worldwide application
• MyTouch as standard user interface with clear text display
General Specification
| Part number | 05.02.0171 | 05.02.0195 | 05.02.0193 |
| Order numbers | V50 M | V64 T | V77 T |
| Description | WBCL1203001C | WBCL120303B | WBCL1203002B |
| Cooling capacity* (BTU/h) | 8.500 – 50.000 | 8.500 – 64.000 | 8.500 – 77.000 |
| Cooling capacity* (kW) | 2.5 – 14.6 | 2.5 – 18.7 | 2.5 – 22.6 |
| Heating via reverse cycle integrated | yes | yes | yes |
| Voltage (V) | 230 (-15%/+10%) | 230 (-15%/+10%) | 230 (-15%/+10%) |
| Frequency ++ (Hz) | 50 /60 (+-5%) | 50 / 60 (+-5%) | 50 / 60 (+-5%) |
| Current draw running** (A) | 2.5 – 15* (max. 17) | 2.5 – 23.8 (max. 25) | 2.5 – 24 (max. 26.5) |
| Current draw Start (A) | 2.5 | 2.5 | 2.5 |
| Current draw Eco 1 Mode (A) | 2.5 – 8* (max. 12) | 2.5 – 15* (max. 17) | 2.5 – 15* (max. 17) |
| Current draw Eco 2 Mode (A) | 2.5 – 5* (max. 8) | 2.5 – 8* (max. 12) | 2.5 – 8* (max. 12) |
| Current draw Eco 3 Mode (A) | – | 2.5 – 5* (max. 8) | 2.5 – 5* (max. 8) |
| Chilled water connection (mm), (Inch) | 25 1’’ |
32 1 1/4” F BST |
32 1 1/4” F BST |
| Min. chilled water flow (l/min.) | 35 | 45 | 52 |
| Seawater connection (mm), (Inch) | 25 1’’ M BST |
32 1 1/4” F BST |
32 1 1/4” F BST |
| Min. seawater flow (l/min.) | 38 | 50 | 57 |
| Dimensions unit L x D x H (mm), (Inch) | 567 x 340 x 510 22.3 x 13.4 x 20.1 |
760 x 560 x 510 29.9 x 22.0 x 20.1 |
760 x 560 x 510 29.9 x 22.0 x 20.1 |
| Dimensions unit incl. silent block L x D x H (mm), (Inch) | 590 x 378 x 548 23.2 x 14.9 x 21.6 |
760 x 560 x 550 29.9 x 22.0 x 21.7 |
760 x 560 x 550 29.9 x 22.0 x 21.7 |
| Dimension electronic box L x D x H (mm), (Inch) | 560 x 190 x 465 22.0 x 7.5 x 18,3 |
560 x 190 x 465 22.0 x 7.5 x 18,3 |
560 x 190 x 465 22.0 x 7.5 x 18.3 |
| Dimension chiller L x D x H (mm), (Inch) | 607 x 530 x 510 23.9 x 20.8 x 20.1 |
760 x 750 x 510 29.9 x 29.5 x 20.1 |
760 x 750 x 510 29.9 x 29.5 x 20.1 |
| Dimensions unit incl. silent block + box L x D x H (mm), (Inch) | 620 x 570 x 548 24.4 x 22.4 x 21.6 |
760 x 750 x 550 29.9 x 29.5 x 21.7 |
760 x 750 x 550 29.9 x 29.5 x 21.7 |
| Ambient temperature limit (°C) | 60 | 60 | 60 |
| Sound level unit (dB/A) (measured) | 49.2 | 48.5 | 48.5 |
| Refrigerant charge R410A (g) | 892 | 892 + 770 | 892 + 770 |
| Weight core unit (kg) | 47 | 90 | 90 |
| Weight electronic box (kg) | 15 | 15 | 15 |
| Min. sea water temp. heating (°C) | 6 | 6 | 6 |
| Max. sea water temp. cooling (°C) | 35 | 35 | 35 |
* Based on 7 °C evaporating temperature and 38 °C condensing temperature.
** Amperage values for core unit depend on compressor load. Max values at tropical conditions at 230 V / 50 Hz.
++ BlueCool V-Series systems are tested and approved by Webasto for 50 / 60 Hz operation.
