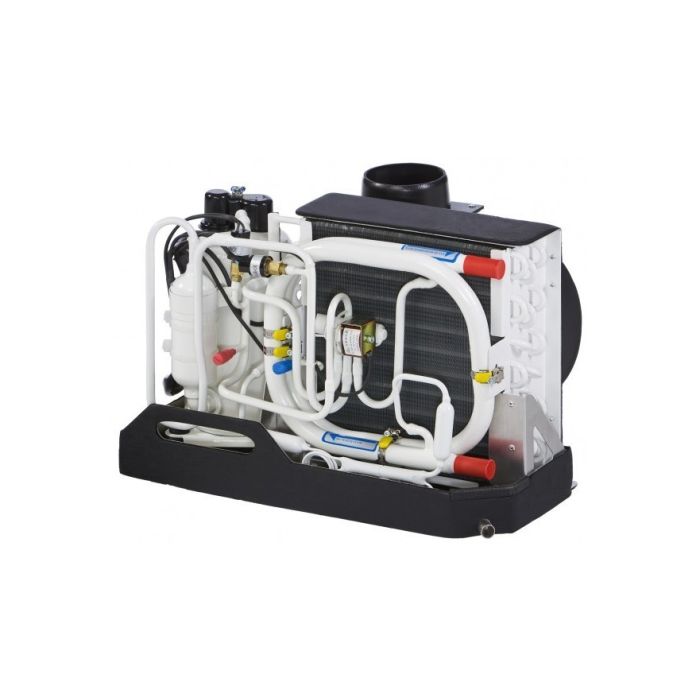

Air conditioner S6 6000BTU 230V 50/ 60Hz (S6 -R-230V-REV-R410a) BlueCool S series self contained unit
Stock Status: Out of stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Description
• Technically updated to be fully 50/60 Hz compatible
• Suitable for worldwide usage
• Very high efficiency, using R410a refrigerant
• Continuous operation even under tropical conditions
• USB diagnosis for easy servicing and parameter setting
• Quiet operation
• Robust design
• Soft start devices available as an option
• Vibration absorber kits available as an option
| Description | Qty |
| Self-Contained unit with electronic box | 1 |
| Airfilter- premounted | 1 |
| Movable brackets | 1 |
| External temperature sensor | 1 |
| Digital display | 1 |
| Bezel for digital display | 1 |
| Display cable | 1 |
| Installation manual | 1 |
| Owners manual | 1 |
General Specification
| Part number | 05.01.0014 | 05.01.0015 | 05.01.0016 | 05.01.0017 | 05.01.0018 | 05.01.0019 | 05.01.0025 |
| S8 | S10 | S13 | S16 | S20 | S27 | S6 | |
| Order numbers | WBCL120001D | WBCL120002D | WBCL120003D | WBCL120004D | WBCL120005D | WBCL120006D | WBCL120000A |
| Cooling capacity* (BTU/h) | 8,000 | 10,000 | 13,000 | 16,000 | 20,000 | 27,000 | 6,000 |
| Cooling capacity (kW) | 2.4 | 2.9 | 3.8 | 4.7 | 5.9 | 7.9 | 1.8 |
| Heating via reverse cycle integrated | yes | yes | yes | yes | yes | yes | yes |
| Voltage (V) | 230 | 230 | 230 | 230 | 230 | 230 | 230 |
| Frequency (Hz) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Current draw running** (A) 50 Hz | 2.4 - 3.5 | 2.6 - 4.0 | 3.6 - 6.3 | 4.9 - 7.1 | 5.9 - 8.9 | 7.0 - 10.5 | 2.0 - 2.4 |
| Current draw max. peak (A) 50 Hz | 28 | 27 | 37 | 54 | 60 | 87 | 14 |
| Current draw RMS40**** (A) 50 Hz | 17 | 17 | 22 | 35 | 39 | 48 | 5 |
| Current draw RMS300*** (A) 50 Hz | 9 | 9 | 11 | 19 | 20 | 37 | 3 |
| Current draw max. peak with soft Start (A) 50 Hz |
12 | 11 | 13 | 22 | 23 | 36 | 11 |
| Current draw RMS40**** with soft start (A) 50 Hz |
7 | 7 | 7 | 12 | 14 | 20 | 4 |
| Current draw RMS300*** with soft start (A) 50 Hz |
5 | 5 | 5 | 9 | 10 | 18 | 3 |
| Locked Rotor Amperage LRA (A) | 19 | 19 | 24 | 37 | 43 | 62 | 12 |
| Max. circuit breaker (A) | 16 | 16 | 16 | 16 | 16 | 20 (comp. only) | 16 |
| Air flow (free blowing) (m³/h) | 275 | 400 | 500 | 625 | 625 | 2 x 550 | 275 |
| Air flow (free blowing) (cfm) | 162 | 235 | 294 | 368 | 368 | 2 x 324 | 162 |
| Seawater connection (mm), | 19 | 19 | 19 | 19 | 19 | 19 | 19 |
| Seawater connection (inch) | 3/4” | 3/4” | 3/4” | 3/4” | 3/4” | 3/4” | 3/4” |
| Minimal seawater flow (l/min)@50Hz | 8 | 10 | 12 | 14 | 17 | 21 | 6 |
| Recommended seawater pump + | WB350 | WB350 | WB350/WB500G | WB500/WB500G | WB500/WB500G | WB1000/ WB1000G | WB250 |
| Dimensions L x D x H (mm), | 400 x 320 x 305 | 475 x 310 x 310 | 500 x 350 x 320 | 540 x 350 x 370 | 590 x 340 x 370 | 570 x 510 x 410 | 400 x 320 x 305 |
| Dimensions L x D x H (inch) | 15.7 x 12.6 x 12.0 | 18.7 x 12.2 x 12.2 | 19.7 x 13.8 x 12.6 | 21.3 x 13.8 x 14.6 | 23.2 x 13.4 x 14.6 | 22.4 x 20.1 x 16.1 | 15.7 x 12.6 x 12 |
| Blower connection (mm) | 100 | 100 | 125 | 125 | 125 | 2 x 125 | 100 |
| Blower connection (inch) | 4” | 4” | 5” | 5” | 5” | 2 x 5” | 4” |
| Weight (kg) | 20 | 22 | 27 | 31 | 24 | 46 | 20 |
General note: Values in this table given for 50 Hz only. 60 Hz data available on request.
* BTU/h are based on 7 °C evaporating temperature and 38 °C condensing temperature
** Amperage values for core unit depend on compressor load. Max values at tropical conditions at 230 V/50 Hz
*** Starting amperage RMS (Root Mean Square) for core unit for first 300 ms
**** Starting amperage RMS (Root Mean Square) for core unit for first 40 ms
Recommendation only. Pump size shall be adapted to application constraints in order to always ensure minimal sea water flow.
